How to Set-up Shopify Color Swatches? The Complete Guide

Introduction

93% of consumers say visual appearance is a critical factor in their purchase decision.

Yet a huge chunk of Shopify stores are still showing a plain text dropdown where color swatches should be. That’s a real disconnect, and after 10 years of building and optimizing Shopify stores, we can tell you it’s one of the most common and most fixable gaps.

The problem with a dropdown isn’t that it’s ugly. It’s that it asks customers to do mental work they simply won’t do. Dusty Rose, Slate Blue, Sage Green — these are words. Customers don’t buy words. They buy what they can see.

Swap that dropdown for Shopify color swatches, and the friction disappears. They see the color, they click it, they move toward checkout. That’s why visual selectors drive a 14.6% increase in order rates over dropdowns — not because they look better, but because they think less.

This guide covers exactly how to set them up, three different ways, depending on your theme and technical comfort level.

What are Shopify Color Swatches, Exactly?

Color swatches in Shopify are small clickable color blocks, usually circles or squares, that sit on your product page in place of a color dropdown. When a customer clicks one, the product images switch to that color variant instantly.

As of 2026, Shopify supports swatches natively through the swatch Liquid object, which gives developers access to swatch.color, swatch.color.rgb, and swatch.image — no more hacky workarounds.

Whether you’re a merchant using a modern Shopify theme or a developer building from scratch, there’s a clean path for you.

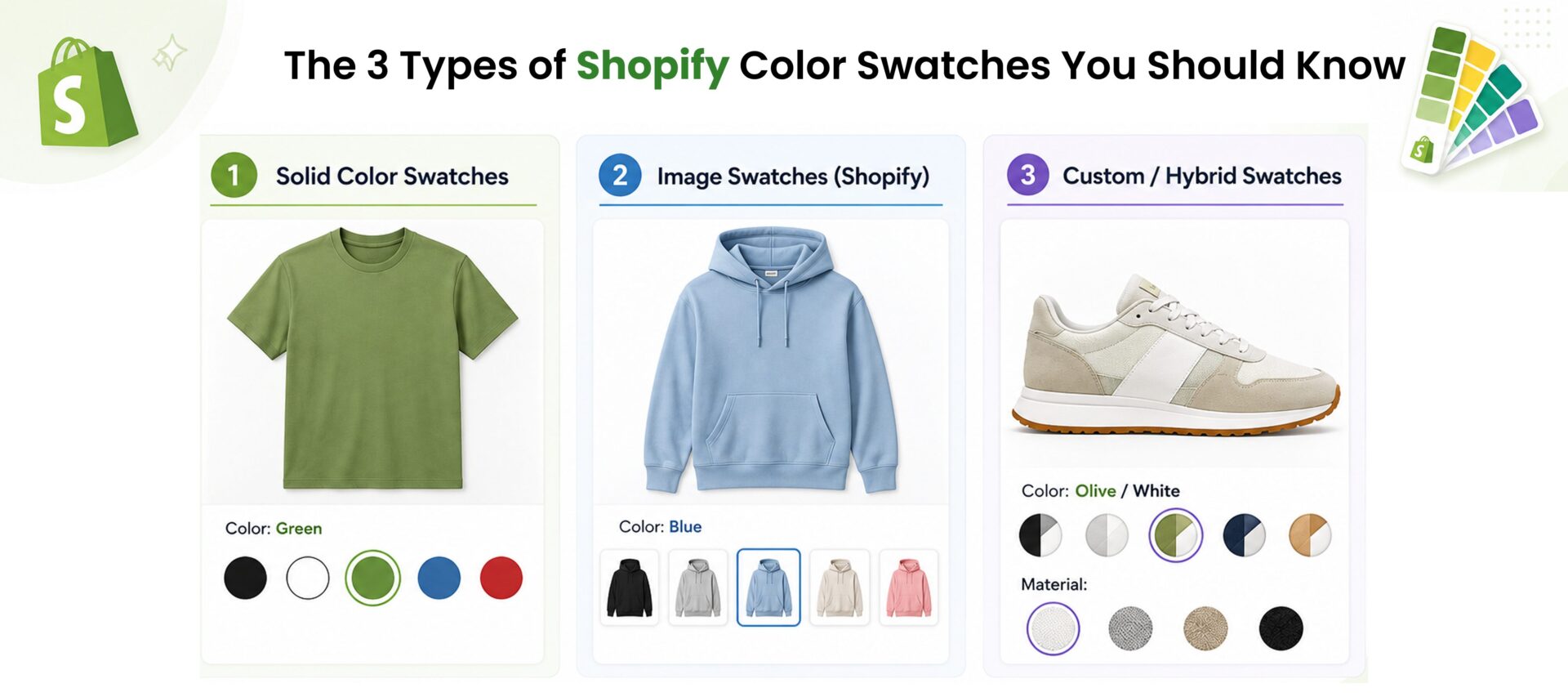

The 3 Types of Shopify Swatches You Should Know

Not every swatch is the same. Getting this decision right upfront saves a lot of rework, and picking the wrong type for your catalog is one of the most common reasons swatch setups feel “off” even after they’re technically working.

1. Solid Color Swatches

This is the most common type and the default starting point for most stores. Shopify renders a flat color block using the hex value you assign. It’s fast to configure, renders consistently, and works perfectly when your product’s color is genuinely what the hex says it is.

A “Forest Green” hoodie in a clean, solid fabric? Solid swatch. Done.

Where it breaks down: if your product has any sheen, texture, or variation in how the color sits (think: a metallic gold that photographs as burnt orange, or a fabric that reads differently on screen vs. in hand), a hex block can actually mislead your customers more than help them. That’s when you move to Type 2.

Best for: Apparel basics, accessories, home goods, stationery, anything with clean, true-to-color solid variants.

2. Image Swatches (Shopify)

Instead of a hex block, the swatch displays a small cropped image — either a texture tile, a fabric close-up, or a miniature of the product itself in that colorway. If you’re selling a shirt that comes in “Navy Solid,” “Navy Stripe,” and “Navy Floral,” you can add three thumbnail images — one solid, one striped, one floral — to communicate the difference.

Image swatches in Shopify also build more trust in the purchase decision. The customer sees something close to what they’re getting before they even click the variant, which is why stores with textiles, prints, wallpapers, or patterned products almost always see lower return rates after switching from solid swatches to image ones.

The setup requires a bit more work, but it’s worth it for the right catalog.

Best for: Fashion with prints or patterns, fabric stores, wallpaper, tiles, home décor, and accessories with distinct material finishes.

3. Custom / Hybrid Swatches

This is the advanced tier — split-color blocks for multi-tone variants, gradient swatches for ombre products, custom-shaped swatches, or even icon-based swatches for non-color options like material type.

These are always built with custom Liquid and CSS, and sometimes JavaScript. You can also use the best Shopify swatches app to achieve the same results without writing custom code.

Best for: Premium brands, stores with unique material or finish variants, multi-tone color options (like a two-toned sneaker), or any store where the default swatch shapes don’t fit the visual identity.

How to Add Color Swatches to Shopify?

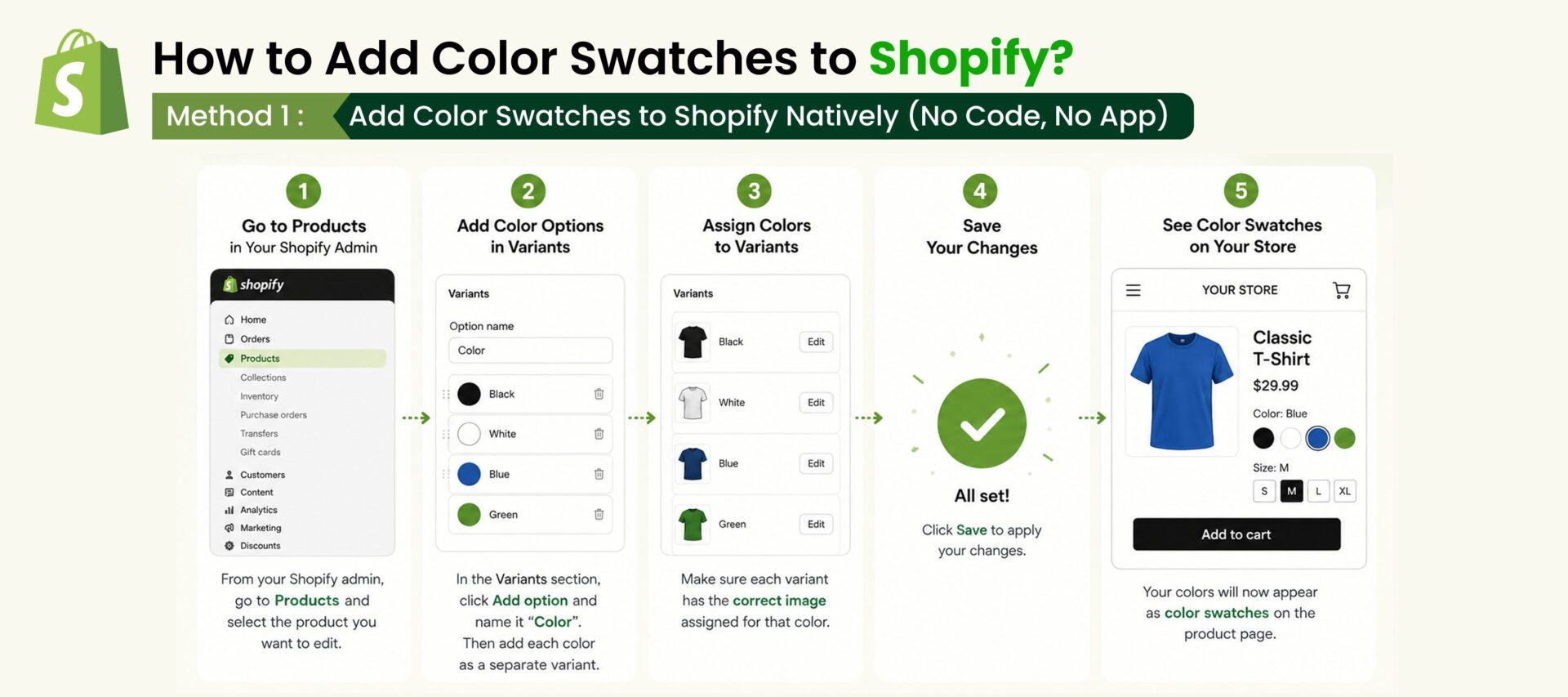

Method 1: Add Color Swatches to Shopify Natively (No Code, No App)

Best for merchants on Dawn, Sense, Refresh, Crave, or any OS 2.0 theme released after 2023.

This is the cleanest and most underused setup path available. Most guides jump straight to apps or code — this should be your first try.

Step 1 — Assign a product category

In your product editor, scroll to the Category field. Assign it from Shopify’s Standard Product Taxonomy (for example, Apparel & Accessories > Clothing). This single step unlocks category metafields, including the native Color field. Skip it, and Color never appears as an option.

This is the #1 reason Shopify color swatches fail to show.

Step 2 — Add color values via the Color metafield

Once a category is assigned, scroll down to find the Color metafield. Add your color values — Shopify provides a built-in color picker or a field for custom hex values. These become the actual swatch data.

Step 3 — Connect variants to the metafield

In the Variants section, click Add options like size or color. Name the option exactly “Color” — capital C, no extra spaces or typos. Connect it to the Color category metafield. Shopify automatically pulls in the values from Step 2.

Step 4 — Enable swatches in the theme editor

Go to Online Store > Themes > Customize. Open a product page, click the Variant Picker block in the left sidebar, and change the picker type to Color Swatch. Pick your shape — circle or square. Hit Save.

That’s the full native flow. No app install, no code edits.

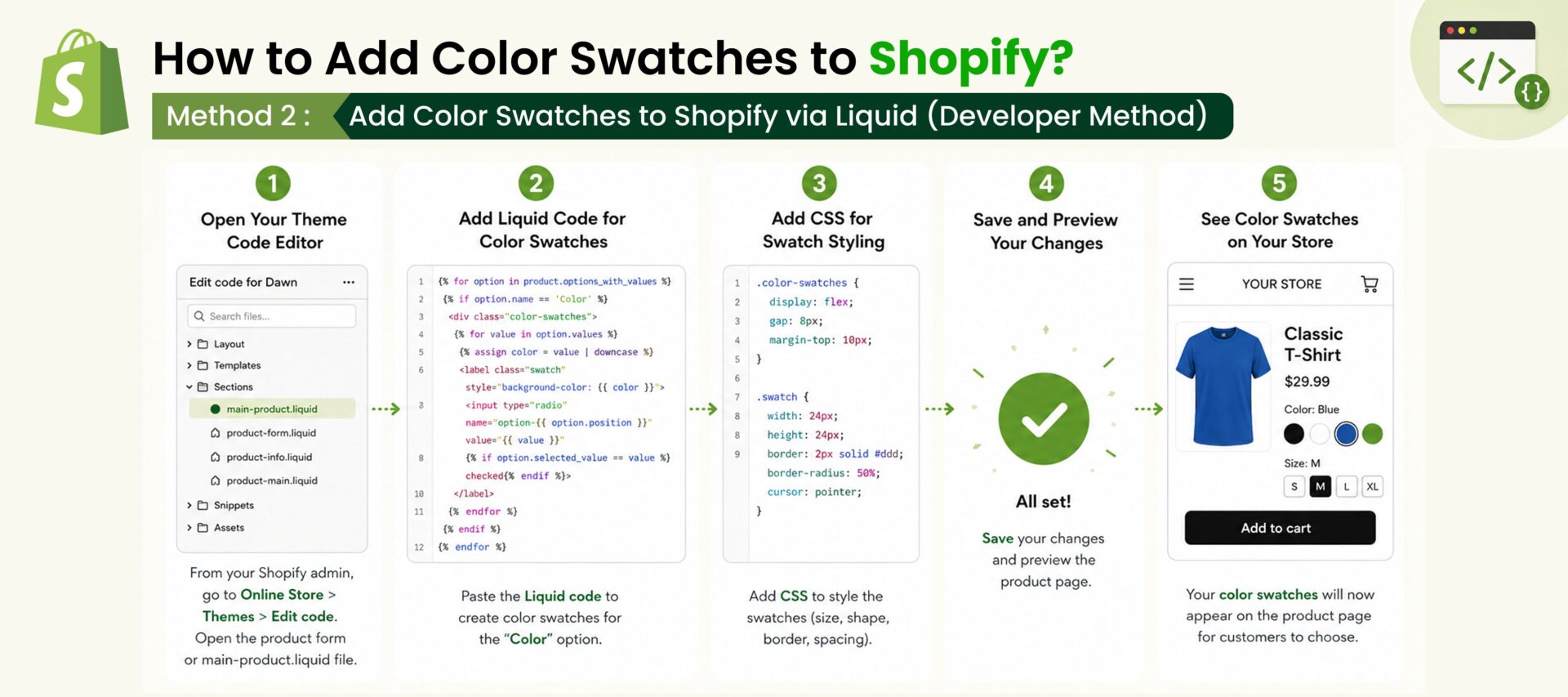

Method 2: Add Color Swatches to Shopify via Liquid (Developer Method)

If Method 1 isn’t an option, you go into the code. Shopify’s native swatch Liquid object, available as of Products 2.0, makes this much cleaner than it used to be.

Inside variant-picker.liquid (or wherever your option values render), a basic color swatch implementation looks like this:

{% for value in option.values %}
  <label
    class="swatch {% if value == option.selected_value %}swatch--active{% endif %}"
    style="background-color: {{ value.swatch.color }};"
    title="{{ value }}">
    <input type="radio" name="{{ option.name }}" value="{{ value }}">
  </label>
{% endfor %}

Then pair it with a JavaScript event listener that fires on click, updates the selected variant, and swaps the product gallery to the matching variant image. The swatch object handles the data; you control the markup and behavior.

For image swatches, replace the background-color inline style with an <img> tag pointing to value.swatch.image or variant.featured_image.

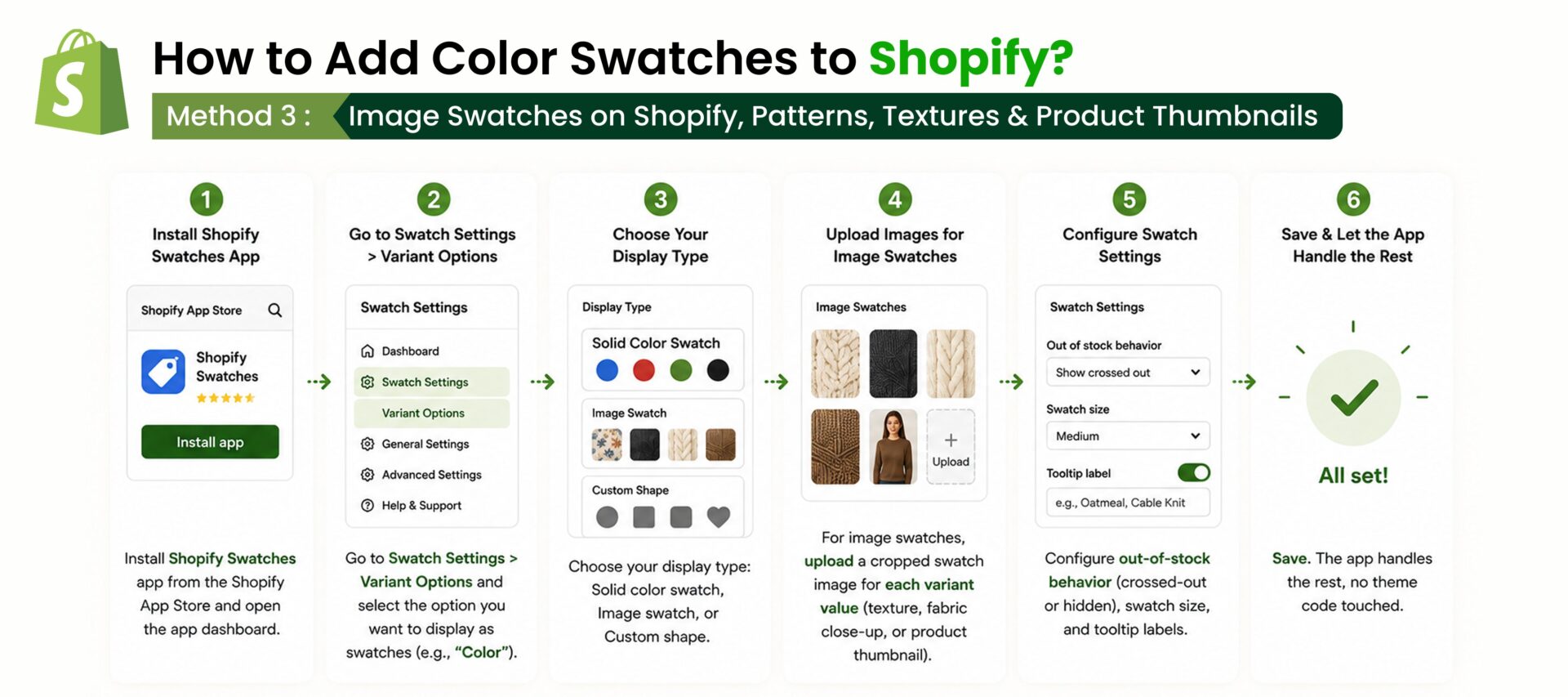

Method 3: Image Swatches on Shopify — Patterns, Textures & Product Thumbnails

If your Shopify theme doesn’t support native swatches and you’d rather not go into Liquid, a dedicated Shopify color swatches app is the cleanest path. The Shopify apps can inject swatches directly into your storefront — solid colors, image swatches, and custom shapes — all managed from a dashboard.

Here’s how to set it up using a Shopify swatches app:

1. Install a Shopify swatches app from the Shopify App Store and open the app dashboard.
2. Go to Swatch Settings > Variant Options and select the option you want to display as swatches (e.g., “Color”).
3. Choose your display type — solid color swatch, image swatch, or custom shape.
4. For image swatches, upload a cropped swatch image for each variant value— such as a texture tile, fabric close-up, or product thumbnail.
5. Configure out-of-stock behavior (crossed-out or hidden), swatch size, and tooltip labels.
6. Save. The app handles the rest — no theme code touched.

What makes the app route worth considering beyond just convenience: it also handles collection-page swatches, sold-out variant styling, and cross-theme compatibility out of the box — things that require extra dev work if you’re building from scratch.

Final Thoughts

Shopify color swatches are one of those small changes that punch well above their weight. You’ve got three solid paths to get there: native settings if your theme supports it, Liquid if you need full control, or an app if you want it done without touching code. Pick the one that fits your setup and ship it.

The method matters less than actually having swatches. Every day your product page shows a plain dropdown is a day you’re leaving conversions on the table.

If you need help getting it done right — whether it’s a quick swatch implementation or a full product page overhaul — our team is ready to help.
